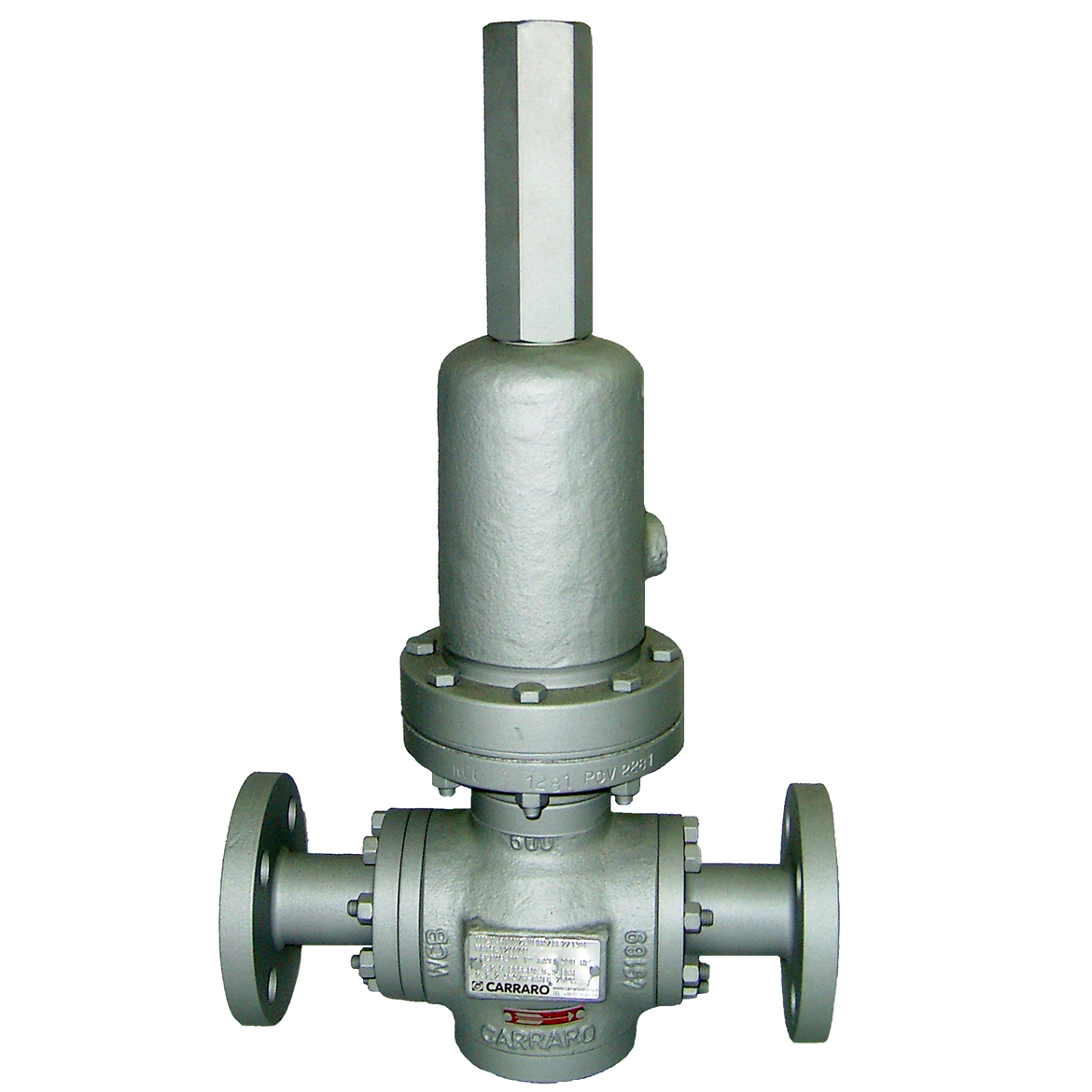

UBAN / UBANS

FUNCTION	Differential, Reducing
DIAMETERS	From ½” up to 2”
CONNECTIONS	Flanged (ANSI or PN) (std), Threaded (F-NPT or GAS/BS)
SEAT	Single
MAX RATING	Inlet ANSI 1500 / Outlet ANSI 600
CV	From 0,031 up to 12,8
BODY MATERIAL	"exotic" materials, carbon steel, stainless steel
TRIM MATERIAL	"exotic" materials, stainless steel (std)
DIAPHRAGMS	EPDM, FKM, other, polychloroprene, stainless steel
MAX INLET PRESSURE	280 barg (threaded version up to 1")
REGULATED PRESSURE RANGE	0,0012 – 52 barg
MIN TEMPERATURE	-196°C
MAX TEMPERATURE	300°C

FUNCTION
